So I tested installed HAL sensor on the Mow motor and signal is following :

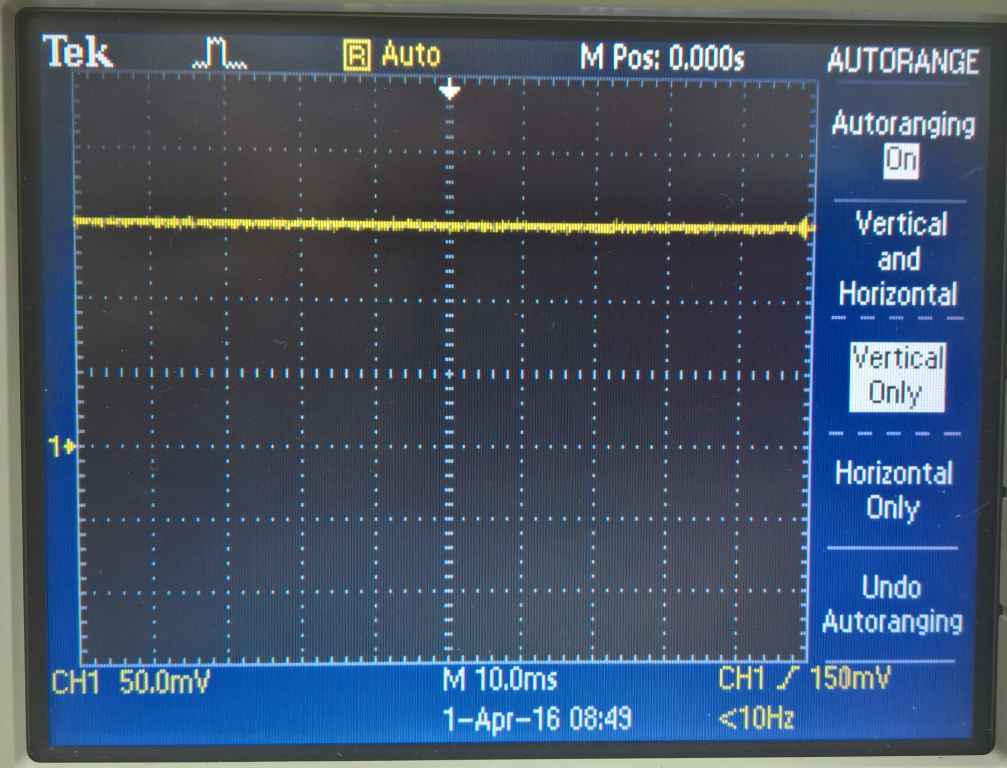

when magnet is on hal, there is 0V :

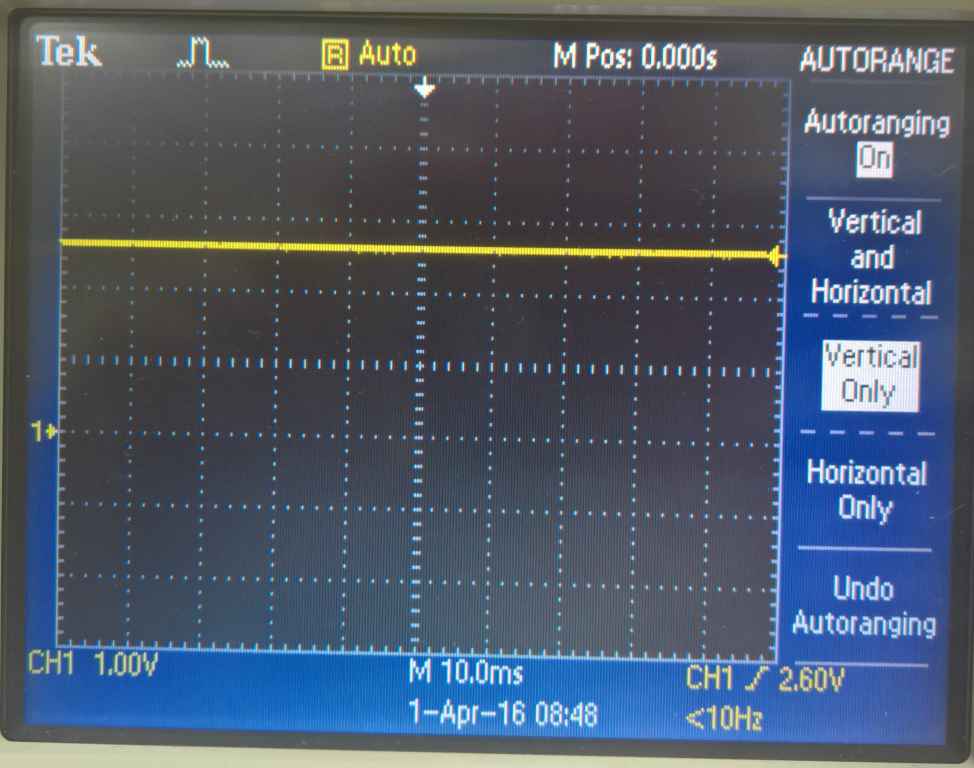

and out of the hal 2,6V :

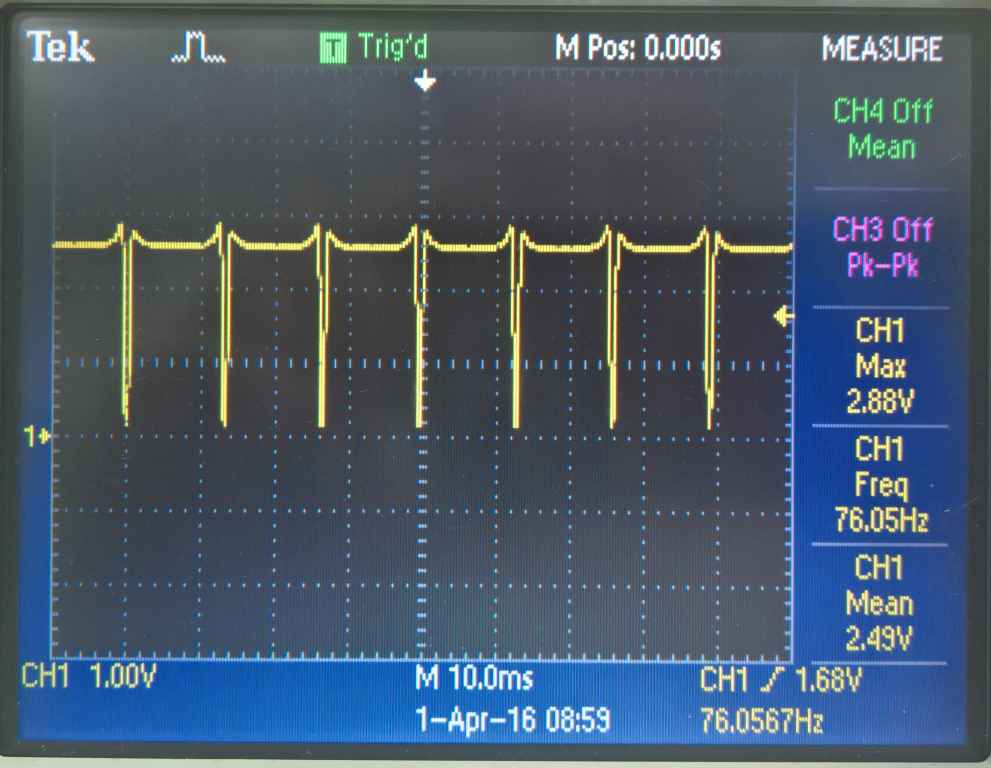

Not sure if this short pulses are enough for interrupt counting.

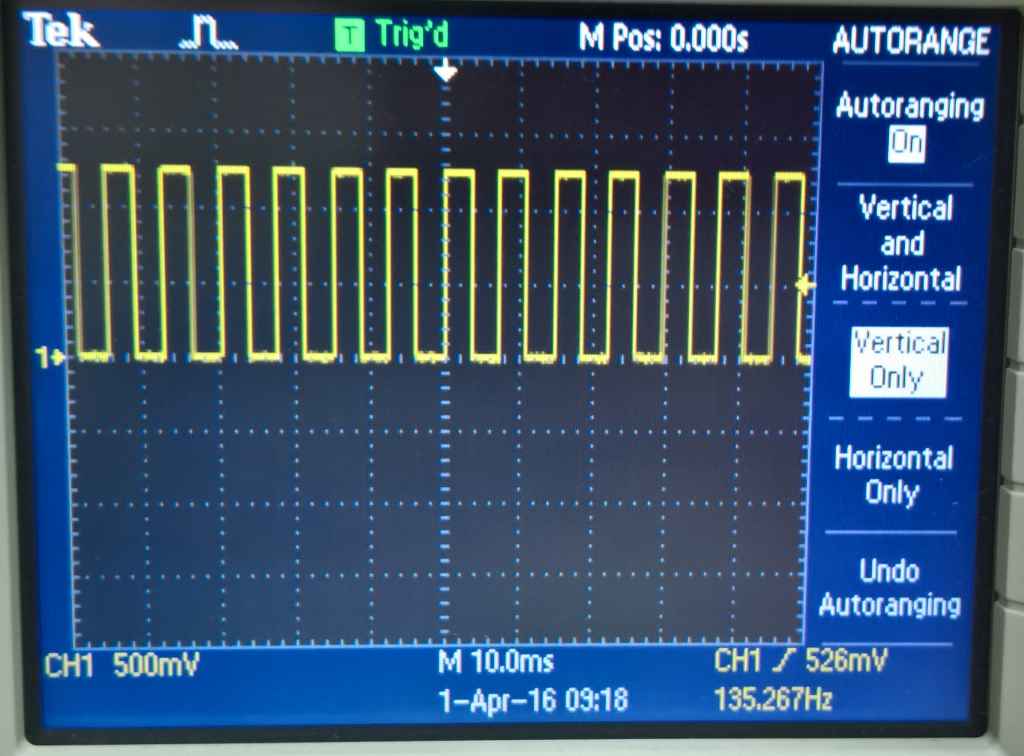

I found also other PCB with other HAL and signal is different :

What's your opinion ?

Thanks

Alex
Attachment: https://forum.ardumower.de/data/media/kunena/attachments/1183/running.jpg/



[cadaver]

I would assume that only the last signal will work. The first signal needs pre-processing by some circuit.
